Features:

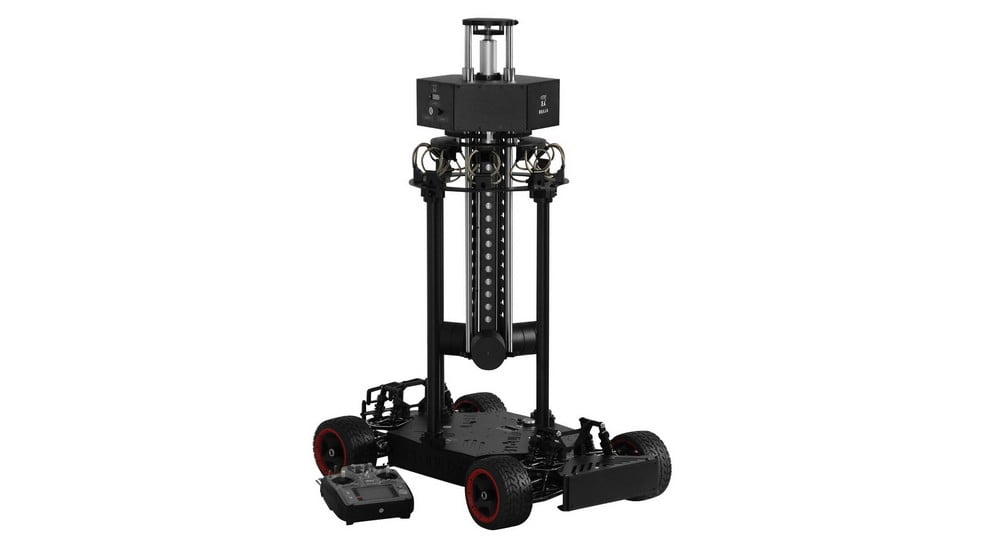

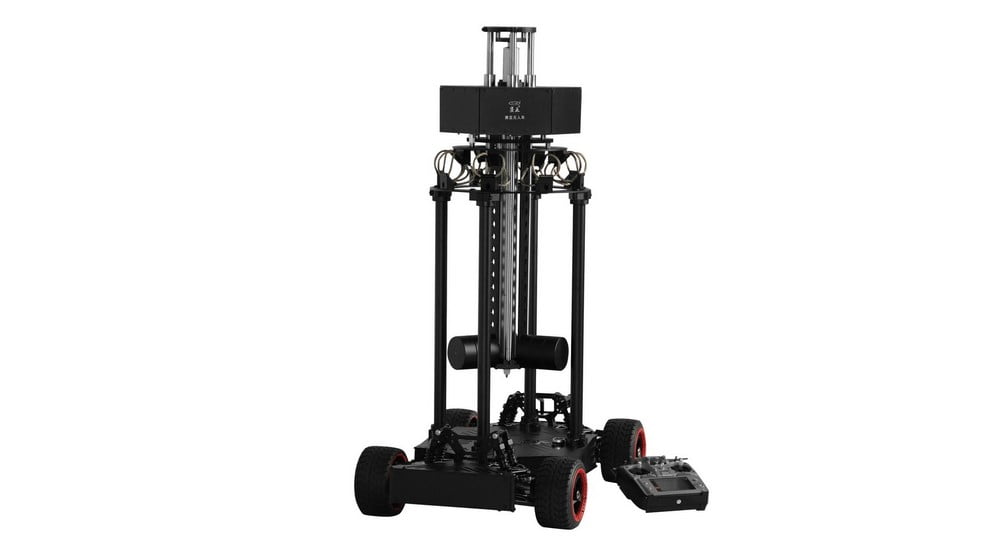

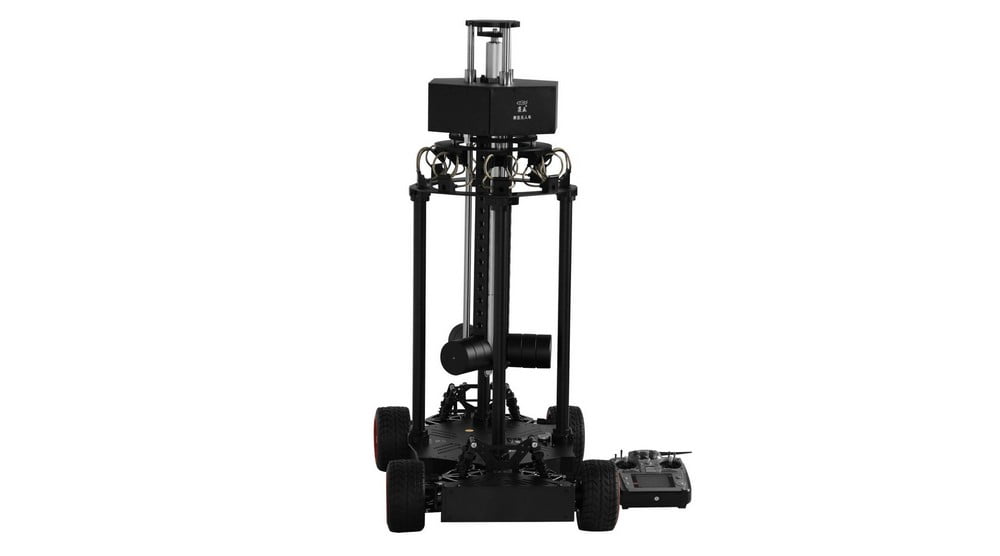

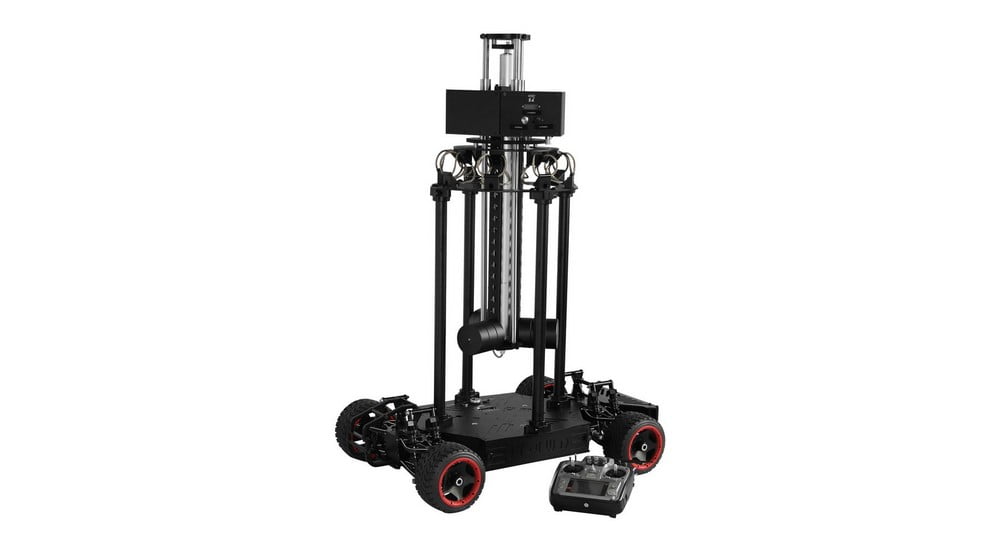

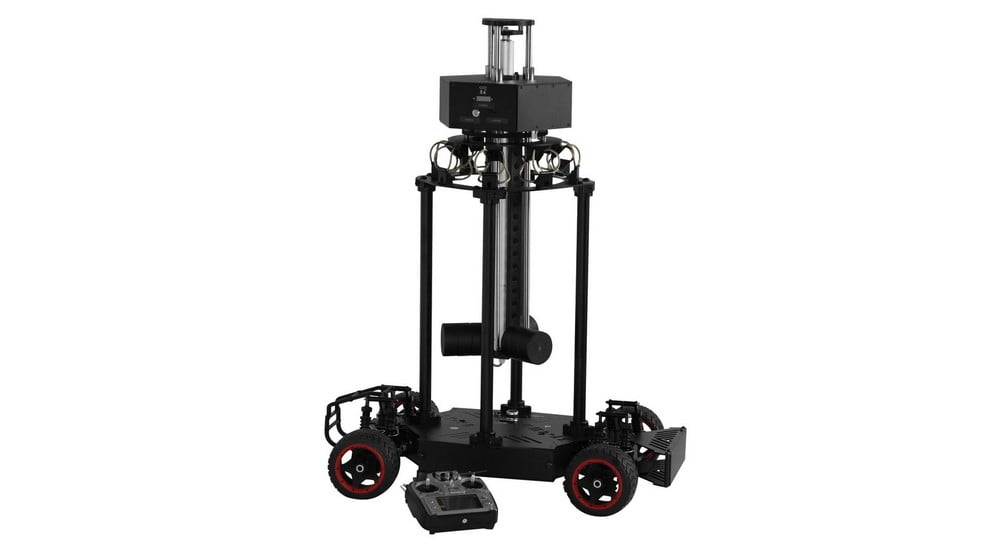

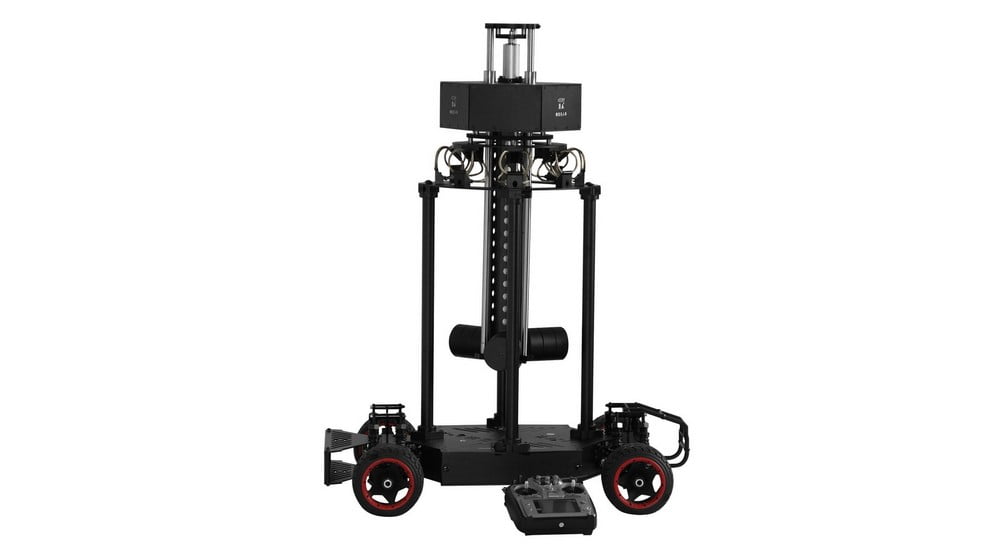

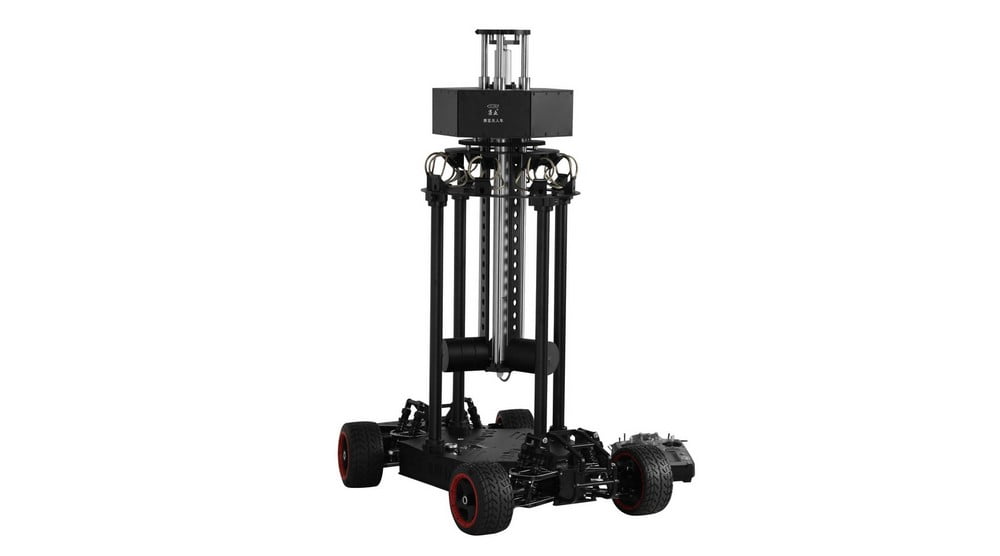

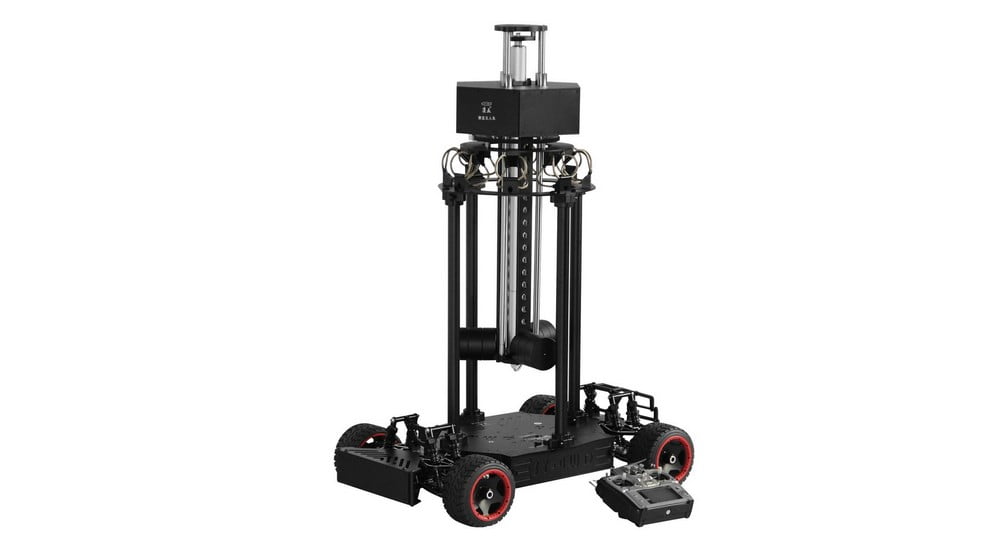

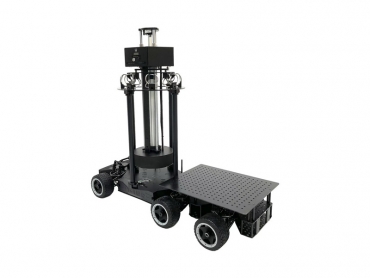

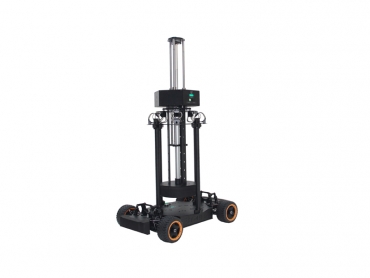

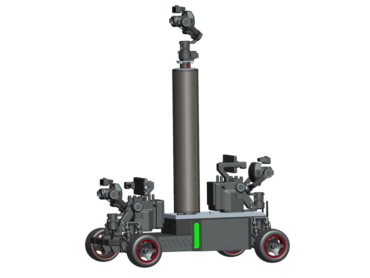

SK VR1 4WD RC VR Camera Car+ Auto lifting & rotating Stabilizer, the Snail VR is used for 360 VR video shooting, the shooting video picture is stable and smooth, it is easy to operate, can be equipped with different panoramic cameras. It can be fixed speed, uniform speed, low speed, straight line running, stable starting and no noise; multistage mechanical stabilization function, effectively eliminate jitter and prevent high frequency vibration. It can be used as fixed-point shooting and motion shooting, VR live broadcast, VR recording and broadcasting! It can also be used for traditional film and television shooting, so that you can get more free and changeable shooting video pictures than fixed shooting device.
Innovative products-Utility Model Patent No.: ZL201720185813.1
Functions:
* Full metal material: high strength CNC 6061-T6 aluminum, steel gear.
* Max load: 11kg. it is not problem to install JAUNT ONE 11kg or Nokia OZO.
Using humane and easy operate by remote control: 2.4G 12-Ch LCD Radio control with the maximum distance of 3.5 km.
* Optional video wireless transmission system. With 5.8G digital signal and 1080 high-definition video, the maximum video transmission distance of 5 km.
* Double Damping system:
-8pc Hydraulic shock absorbers independent system parts of the car are not deformed steel wire, shock resistance vibration absorption equilibrium.
-the middle of the VR Stabilizer is steel damping to ensure picture stability when starting and stopping time.
* Mechanical counterweight for the VR stabilizer: to balance the VR Camera and make it is not wobble.
* The VR car professional features:
– fixed speed, constant stable speed running and the speed are adjustable.
– Dual mode: automatic driving and remote control.
– Straight line running, start and stop running smoothly.
– Ultra low speed running and delayed shooting.
– No noise, the car is running for the silence level.
– Gyroscope accelerated sensing, security lock, a key to start and stop.
– The car max load: about 35kg.
* The auto lifting and rotating VR stabilizer features:
– 2.4G Radio control
– Auto lifting, lifting speed are adjustable.
– 360 degree rotation, rotating speed are adjustable.
– Comes with stabilization function, no jitter, anti-high frequency jitter;
– The max height is about 165cm and the whole height will reach at 180mm with car together.
– VR stabilizer max load: about 11kg.
– Standard port: suitable for different brand VR panoramic Camera, such as Jaunt one, Nokia OZO, Insta360 Pro, Gopro, Kandao Obsidia, Z Cam S1 and so on.
* Belt drive without noise.
* Speed: <10 km / h
Technical Parameters:
Car size: 880 * 570 * 280mm
VR bracket height: from 1120 to 1600mm.
Car Net Weight: 19.8kg.
VR bracket Net Weight: 20.4kg.
Belt drive without noise.
Brushless Motor: 200W high power.
Car Battery: 36V, 2.6Ah 93.6Wh capacity lithium battery, ensure 4 hours of endurance time.
VR bracket Battery: 36V, 2.6Ah 93.6Wh capacity lithium battery, ensure 4 hours of endurance time.
Steering system: 2*55KG Servo, 2*6V 4600mA battery to supply power.
Package:
Wooden Box No.1：G.W: 34.5kg. Size：95*57*27.5cm
Wooden Box No.2：G.W: 43.0kg. Size：109*48*42cm
Including:
Car Frame. 1 set
VR bracket (Auto lifting & rotating stabilizer). 1 set
12 channel Remote control. 1pc
12 channel receiver. 2pc
Charger for the batteries . 3pc
Fixed adapter screw for the panoramic camera. 1pc
Spare screws for car. numbers
Multi – function wrench. 1pc
Hexagon screwdriver. 1pc
Tire sleeve. 1pc
Applications:

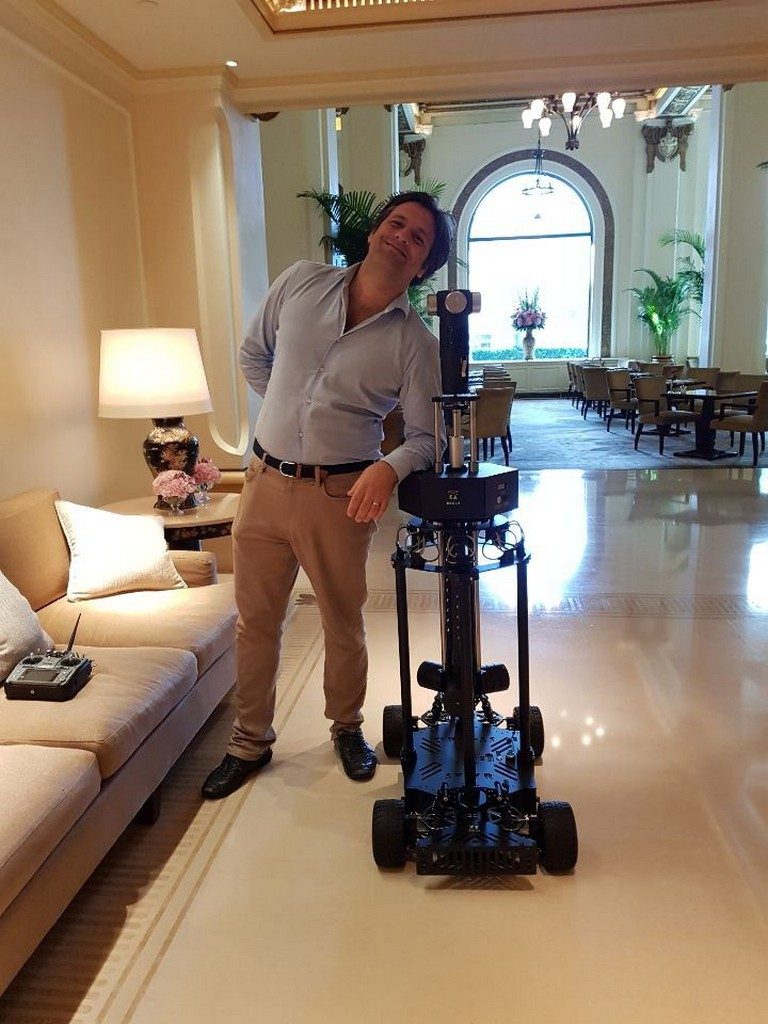

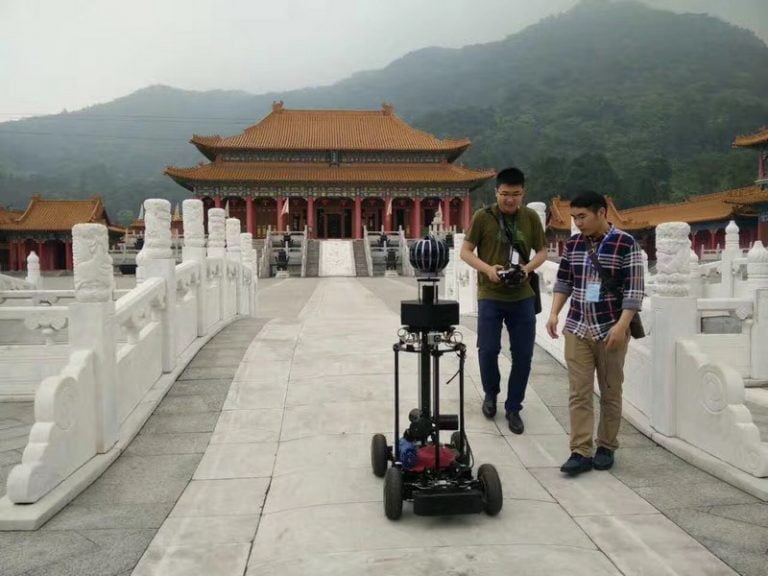

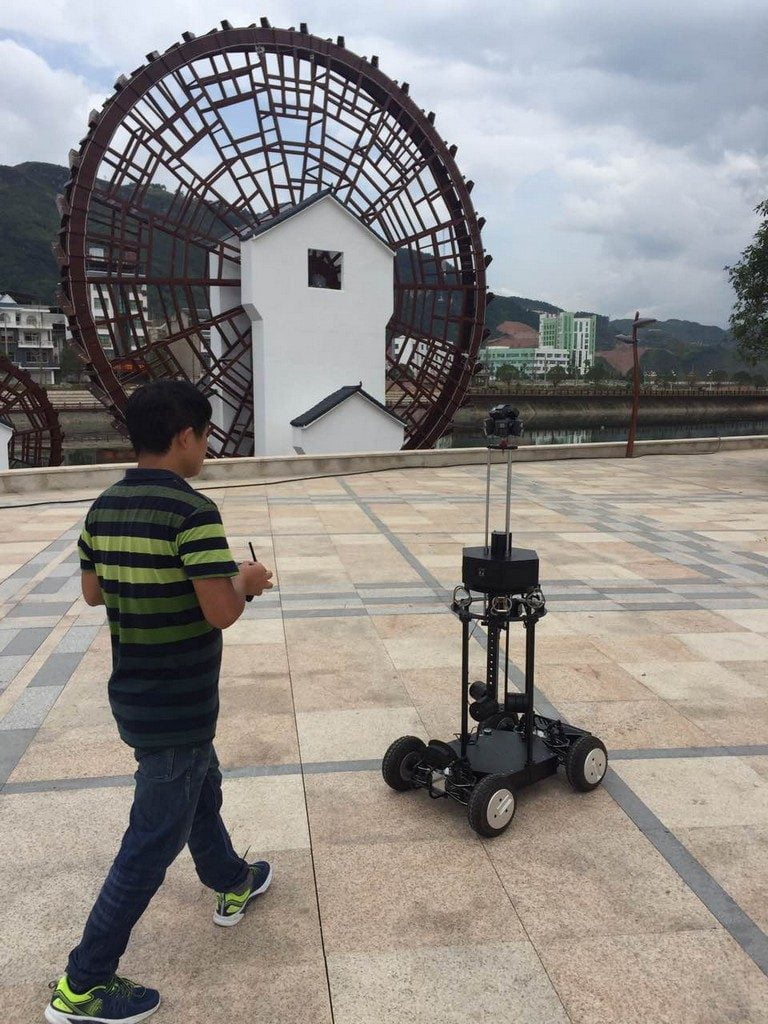

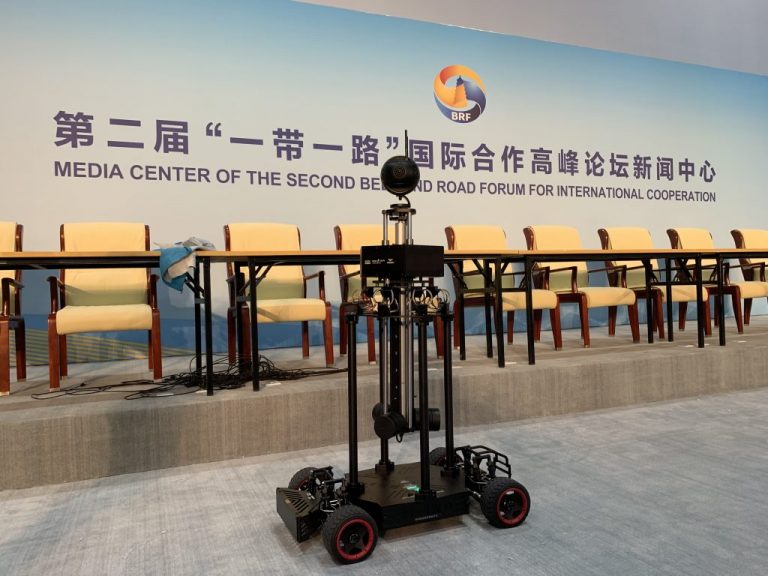

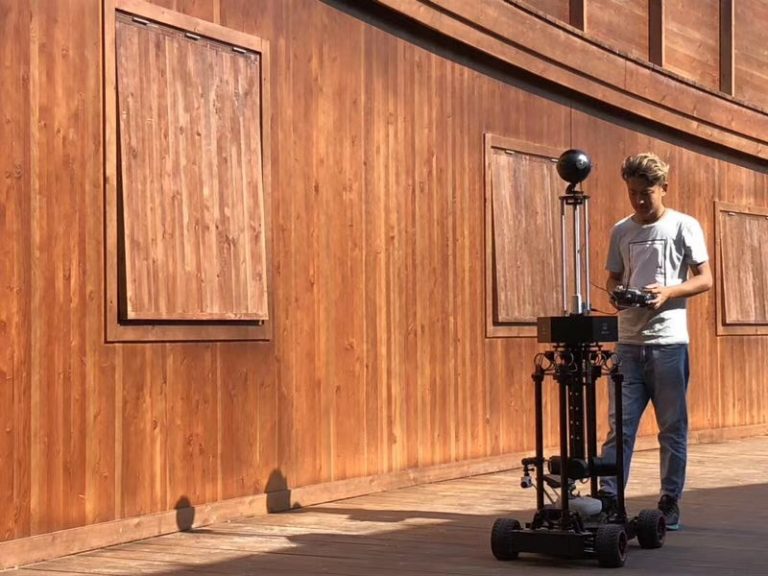

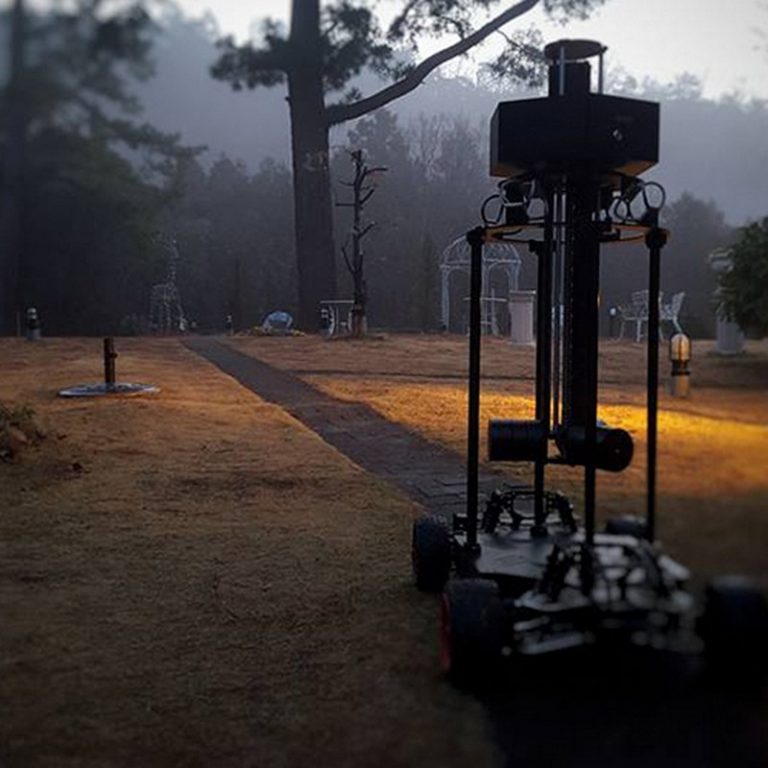

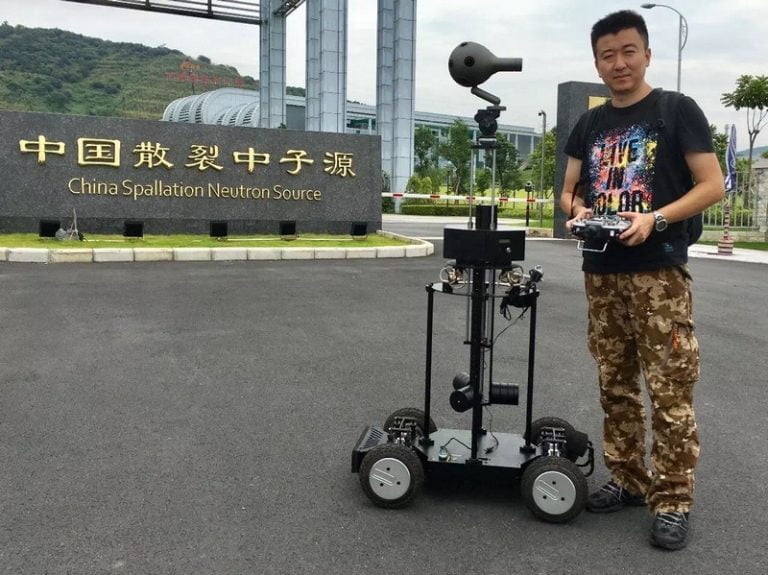

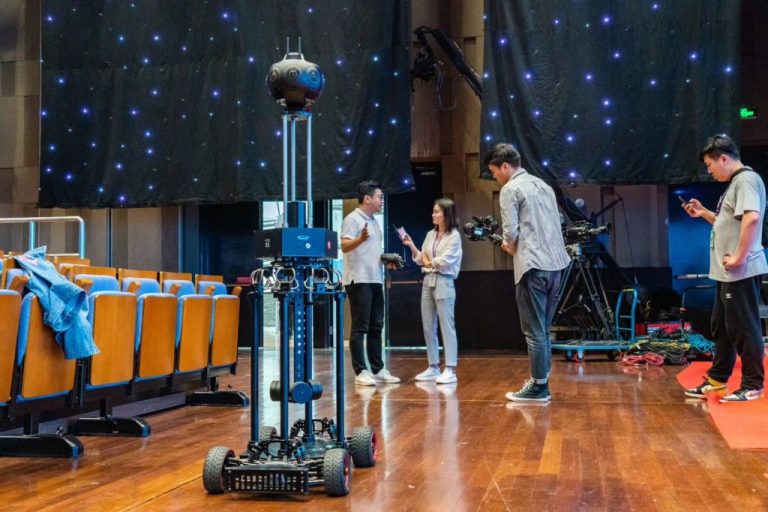

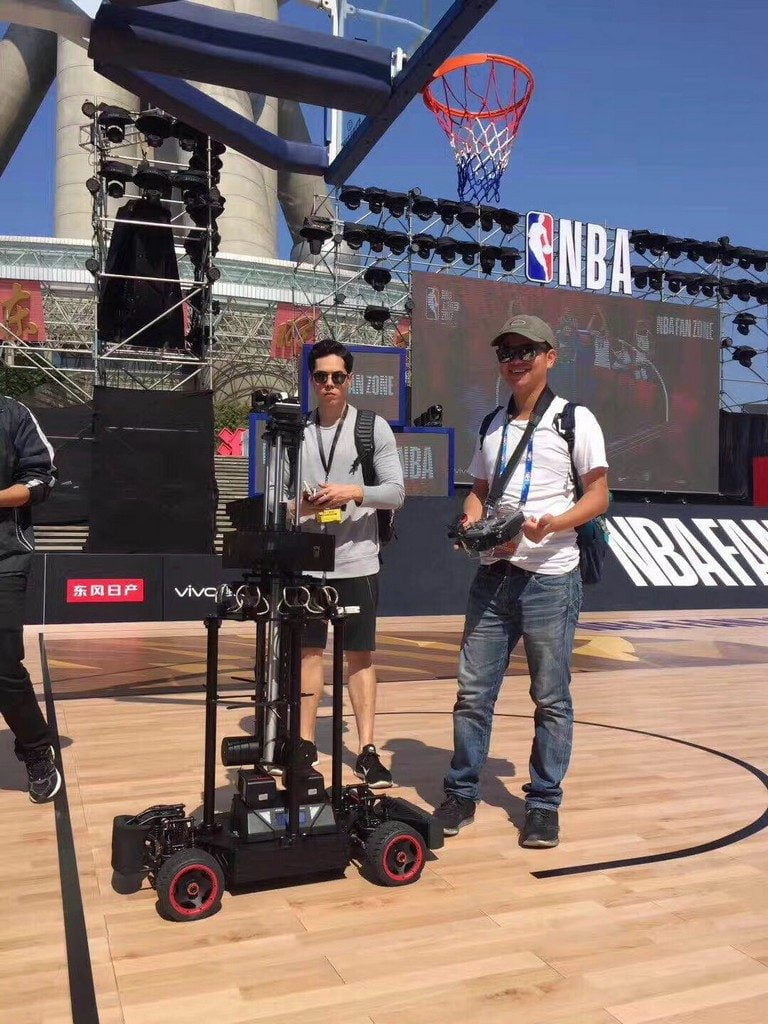

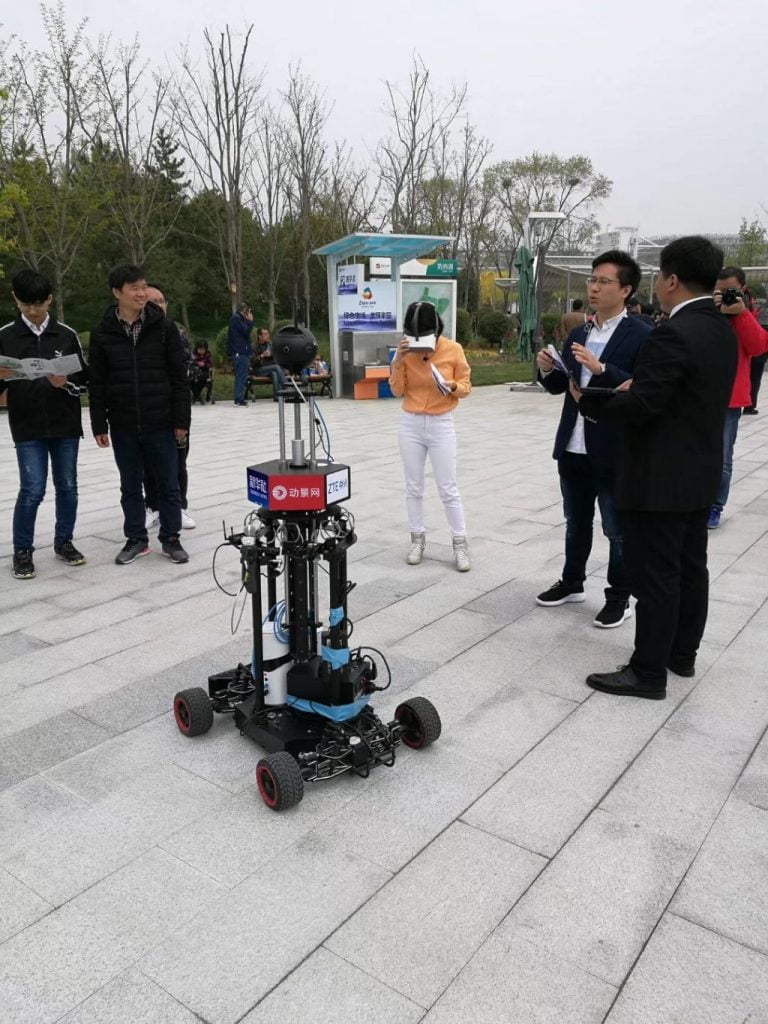

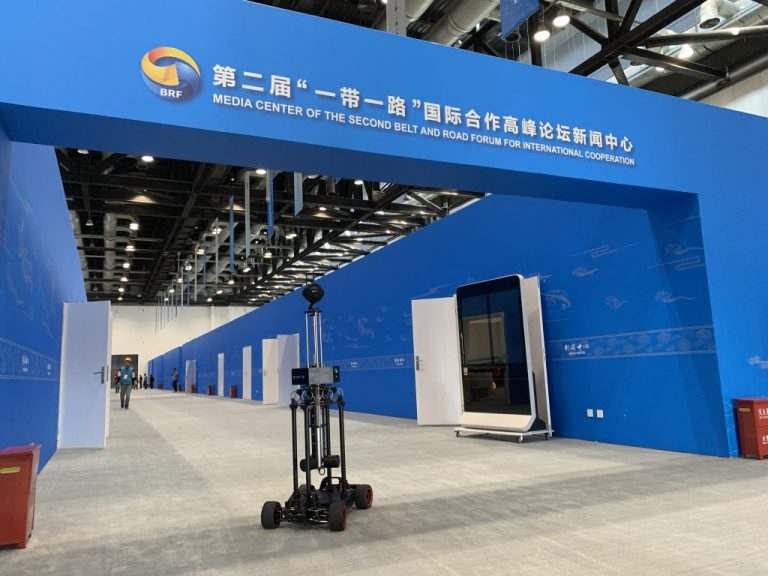

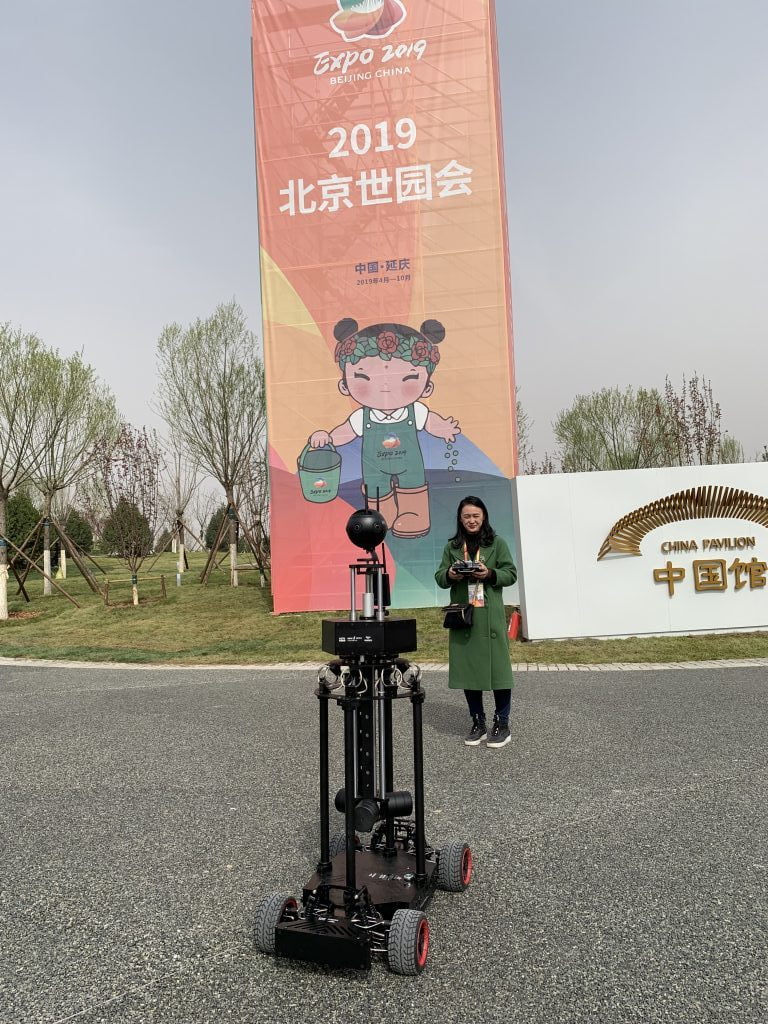

Successfully applied to Japan Sensoji Temple, The Peninsula Hotels, NBA Race Shanghai Station, China Spallation Neutron Source, Pingtang International Experience Planetarium, Evergrande Real Estate, SF Express, Lee Kum Kee, and other VR shooting.
