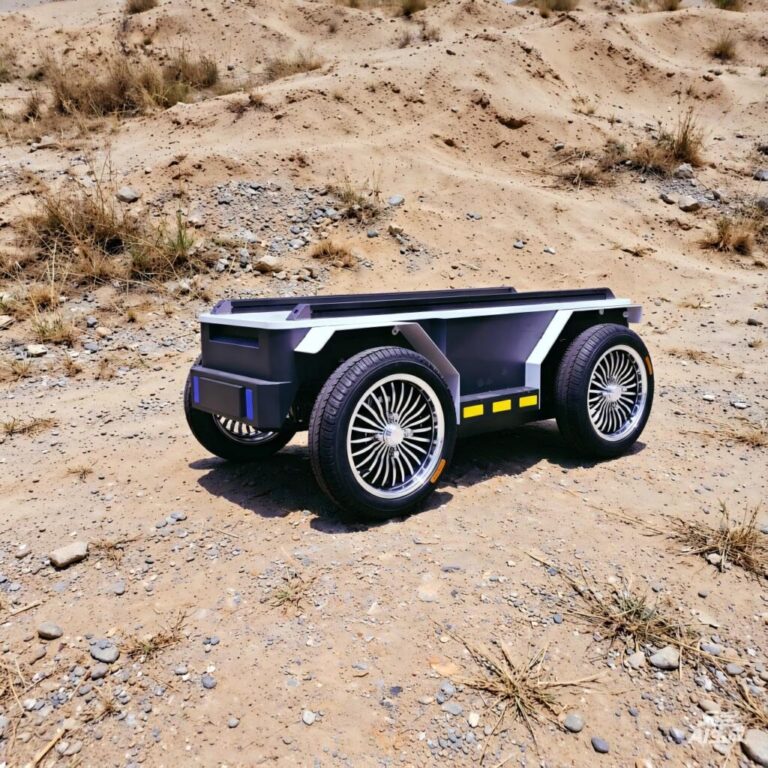

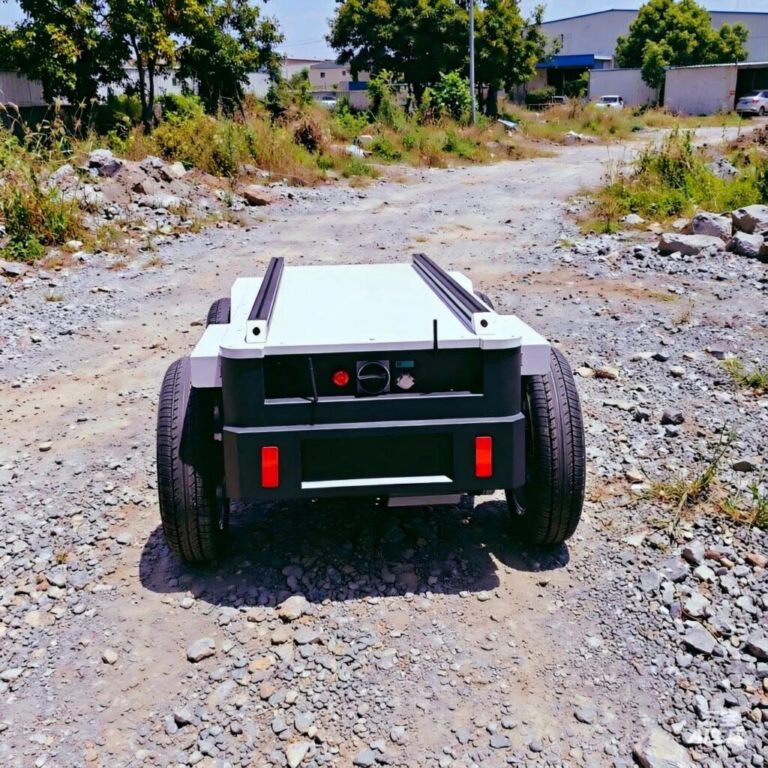

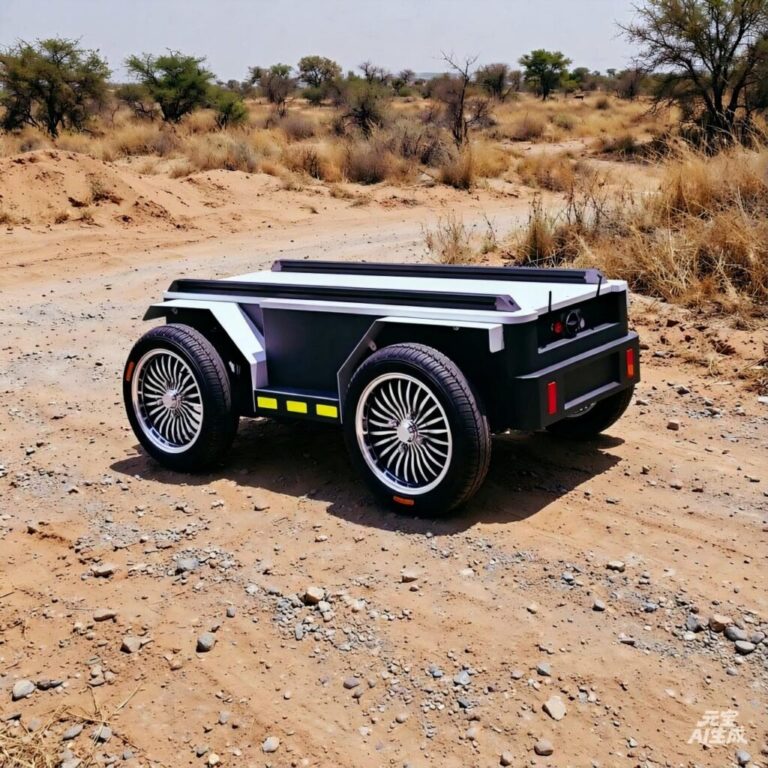

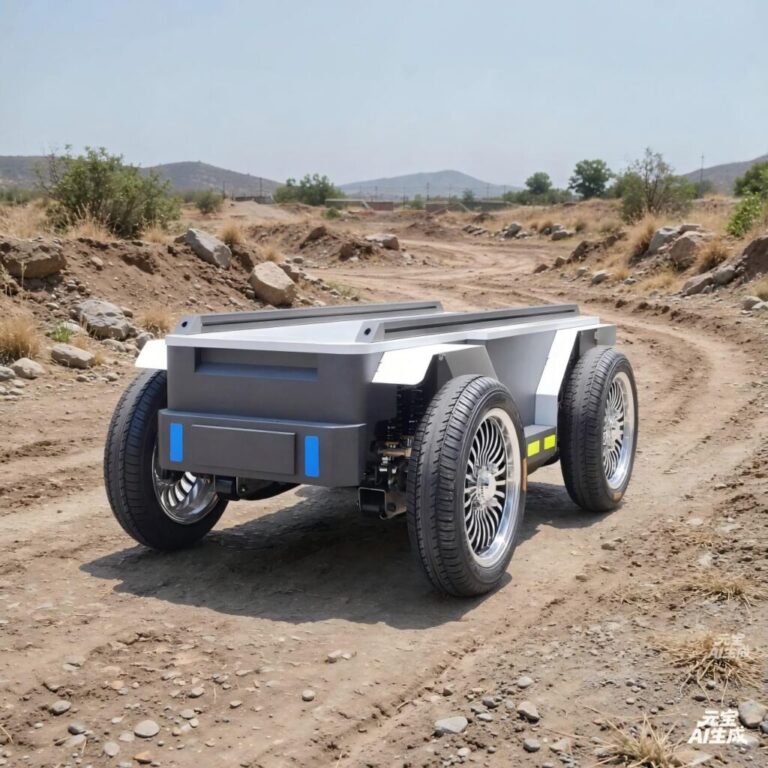

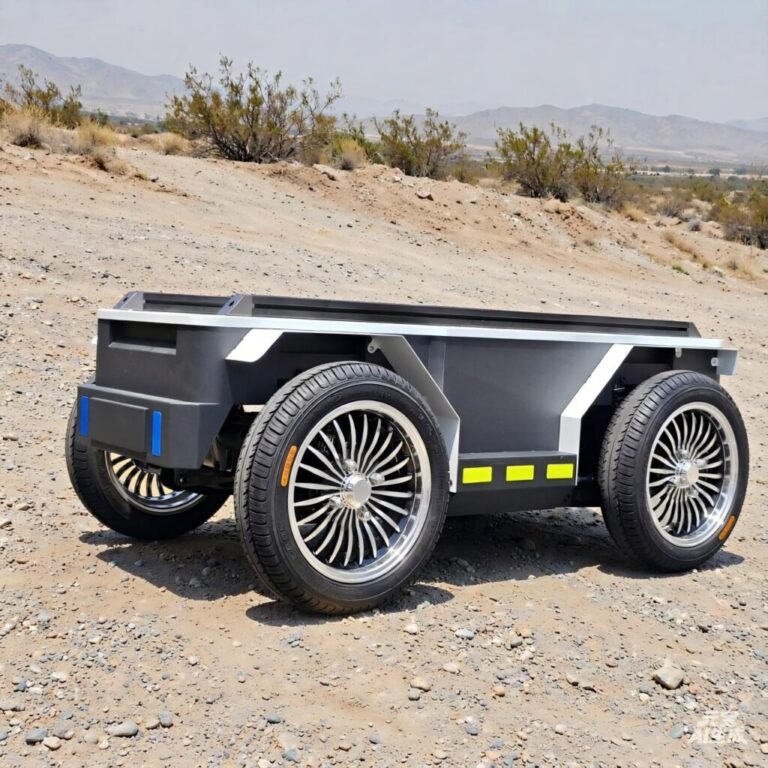

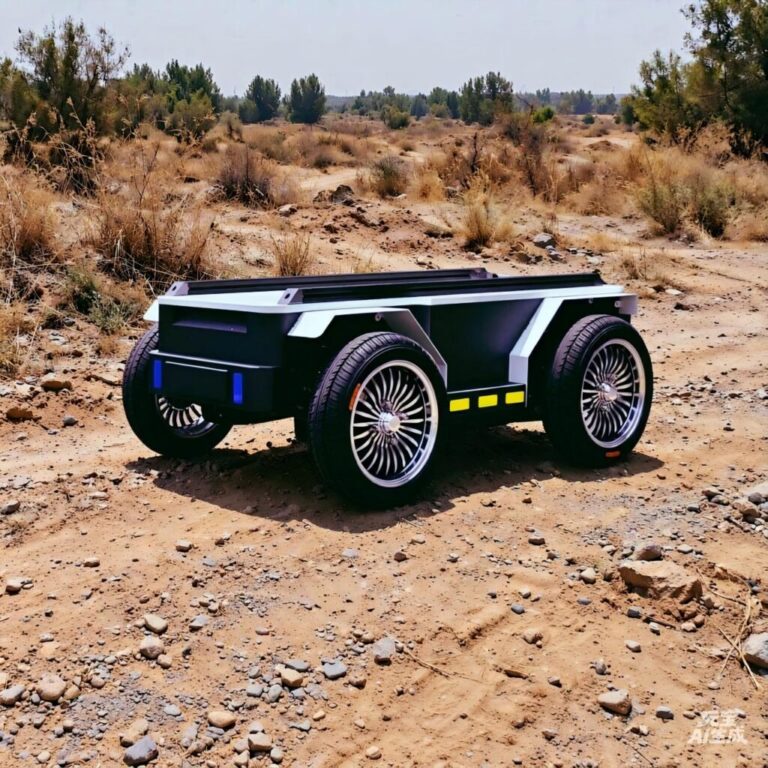

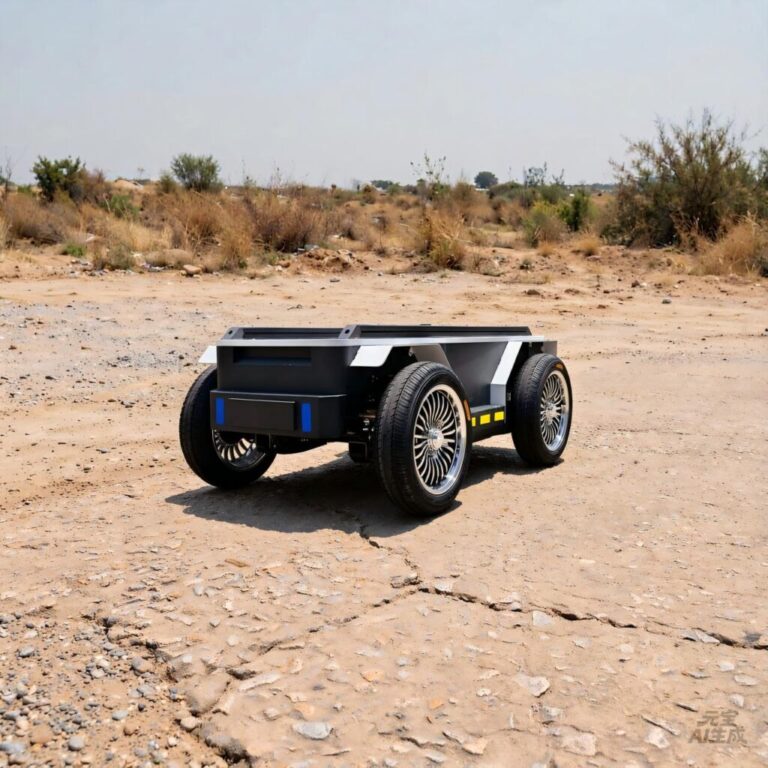

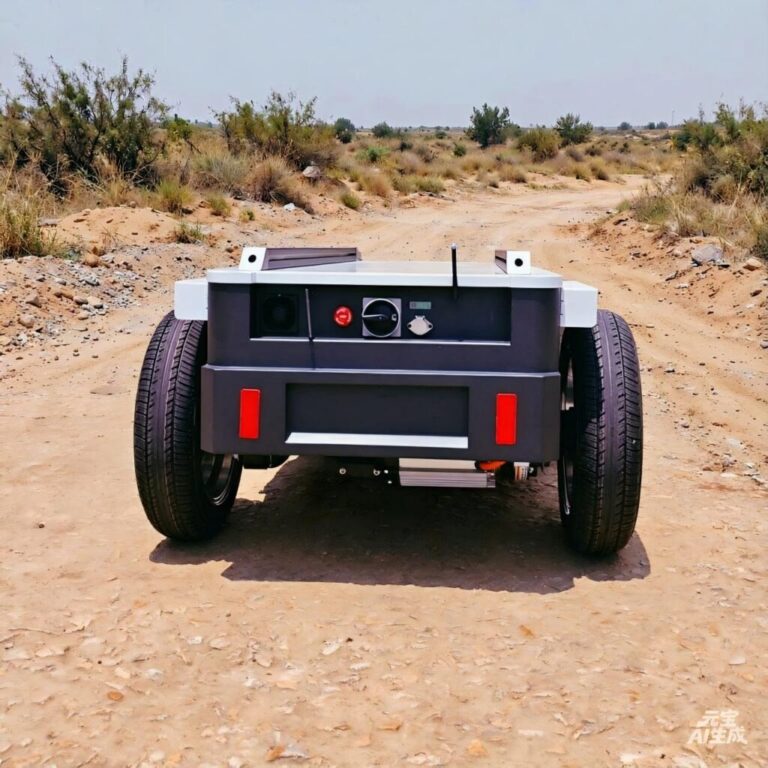

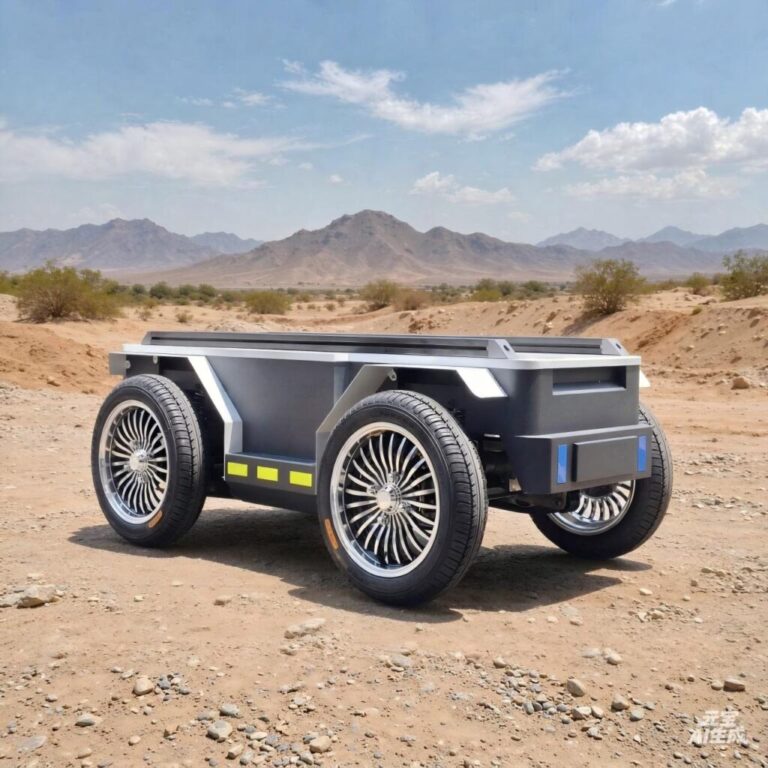

Heavy-Duty Ackerman Steer-by-Wire Robot Chassis
Max.Payload 500kg, Size: 1500 × 905 × 500 mm
Model: SY–S1500
Front-wheel drive, solid axle suspension, automotive-grade shock absorbers, heavy-duty capacity. A platform for developing robot applications across various industry scenarios.
Application Areas: Used in multiple scenarios across logistics, energy, agriculture, industry, and other sectors. Applications include inspection, heavy-duty transportation, new energy vehicle education, and research on autonomous driving technology development.
Technical Specification
Model: SY-S1500
Dimensions: 1500X905X500mm (L*W*H)
Chassis Weight: Approx. 200kg
Structure: Front-to-rear-wheel drive, Ackermann Steer-by-Wire.
Suspension: Solid axle suspension, automotive-grade shock absorbers.
Ground Clearance: 140mm
Wheelbase: 956mm
Track Size: 799mm
Tire Diameter: 450mm
Drive Motor: 48V, 2KW DC brushless permanent magnet synchronous motor
Battery: 48V, 40Ah lithium battery; larger capacity batteries available upon request
Charger: 54.6V, 10A Manual charging method
Control method: 2.4G remote control
Minimum turning radius: Approximately 2.5 meters
Steering wheel maximum turning angle: 32°
Battery level display: With battery level display
Braking method: Motor brake
Parking method: Electromagnetic brake
Vertical load: ≤500kg
Operating speed: Approximately 5km/h
Maximum range: 15km
Wading depth: 150mm
Maximum gradeability: 15% with full load, 20% without load
Crossing width: 200mm with full load
Protection rating: IP54
Communication method: Supports CAN, provides communication interface
Number of axles: 2
Collision protection structure: Front and rear anti-collision bars
| SY-S1500 Technical Specification | |||||
| No. | Description | Specifications | No. | Description | Specifications |
| 1 | Dimensions | 1500X905mmX500mm(L*W*H) | 15 | Battery Display | With battery level indicator |
| 2 | Chassis Weight | About 200KG | 16 | Braking Method | Motor brake |
| 3 | Structure | Front-to-rear-wheel drive, Ackermann Steer-by-Wire | 17 | Parking method | Electromagnetic brake |
| 4 | Suspension | Solid axle suspension, automotive-grade shock absorbers | 18 | Vertical Load | ≤500kg |
| 5 | Ground Clearance | 140mm
|
19 | Operating speed | 0-5km/h |
| 6 | Wheelbase | 956mm | 20 | Maximum range | About 15km |
| 7 | Track Size | 799mm | 21 | Wading depth | 150mm |
| 8 | Tire Diameter | 450mm | 22 | Maximum Gradeability
|
15° fully loaded, 20° unloaded |
| 9 | Drive Motor | 48V, 2KW DC brushless permanent magnet synchronous motor | 23 | Span width | 200mm (full load) |
| 10 | Power Battery | 48V 40Ah lithium battery | 24 | Protection rating | IP54 |
| 11 | Charger | 54.6V 10A manual charging | 25 | Communication method | Supports CAN and provides a communication interface. |
| 12 | Control Method | 2.4G remote control | 26 | Number of axes | 2 |
| 13 | Minimum turning radius | 2.5m | 27 | Collision protection structure | front and rear anti-collision bars
|
| 14 | Steering wheel limit angle | 32° | |||
