Technical parameters of new four-wheel drive RC Gimbal Car:
Model: SY MX8
1. Vehicle weight and dimensions:
1) Vehicle weight: about 49kg(the car is 39kg, the riser is 10kg)
2) Dimensions: Car length: 950MM; Width: 638MM; Car height: 244MM; Car + lifting column without raising: 985MM; Car + lifting column raised: 1485MM; Wheelbase: 689MM; Wheelbase: 552MM; Chassis distance Ground height: 55MM; chassis platform width: 400MM.
2. Drive controller: high-power drive and control integrated control system
3. Drive motor: 48V, 800W high-power brushless motor.
4. Power battery: 48V, 10Ah large-capacity lithium battery to ensure long battery life; power display.
5. Steering system: 2*55kg ultra-large torque steering servo, front wheel Ackermann steering system.
6. Remote control system: 2.4G 12-channel LCD remote control.
7. Maximum load: The maximum load of the chassis is ≦50 kg, the maximum lift of the lifting column is ≦15 kg, and the control method is remote control.
8. Maximum speed: about 20km/h. When using it with a lifting column, it is recommended to limit the speed and reduce the speed to ensure safe driving.
9. Gimbal compatibility: The front and rear of the car platform and the top of the lifting column can be used with Ronin 4D, with reserved installation holes; replaceable connectors ensure versatility, and can be used with steel wire shock-absorbing platforms to meet low-angle shooting, and are suitable for most of three-axis stabilizers on the market, including: (all Freefly M series, all DJI RONIN series, all Tilta series), can also be used with the special bracket for the Saiya VR car V560 by replacing the connecting parts.
10. Suspension and shock-absorbing system: The entire vehicle has a hydraulic dual-shock independent suspension system, which can isolate and absorb balanced vibration resistance.
11. Tire style: Suitable for flat roads, off-road and other different terrains, with strong grip. Extra large pneumatic tires with diameters of 280mm and 320mm are optional.
Features: Electronic safety lock key, one-button power off; emergency stop switch; one-button switch for left and right LED light groups; with brake device, one-button braking.
Car accessories: 1 tool bag; 1 set of special charger for 48V power battery; 1 multi-function wrench, 1 small cross socket; 2 wheel nuts; 1 tire socket wrench; wheel nut anti-loosening One roll of tape; 1 set of high-strength small hexagonal screwdrivers; 1 set of spare screws.
New Showcases:
MX8 RC Camera Car in Vietnam’s 80th National Day Military Parade on 2025.9.2
On September 2, 2025, we were honored to have our MX8 rc camera car participate in the live filming of Vietnam’s 80th National Day military parade, held at Ba Dinh Square in Hanoi. This was a highly successful low-angle tracking shoot, and the client was very satisfied with the results. This rc camera car can be equipped with a Ronin series gimbal for low-angle shooting without the lifting columns. Alternatively, it can be equipped with a lifting column (1-1.5 meters) for shooting from human height.

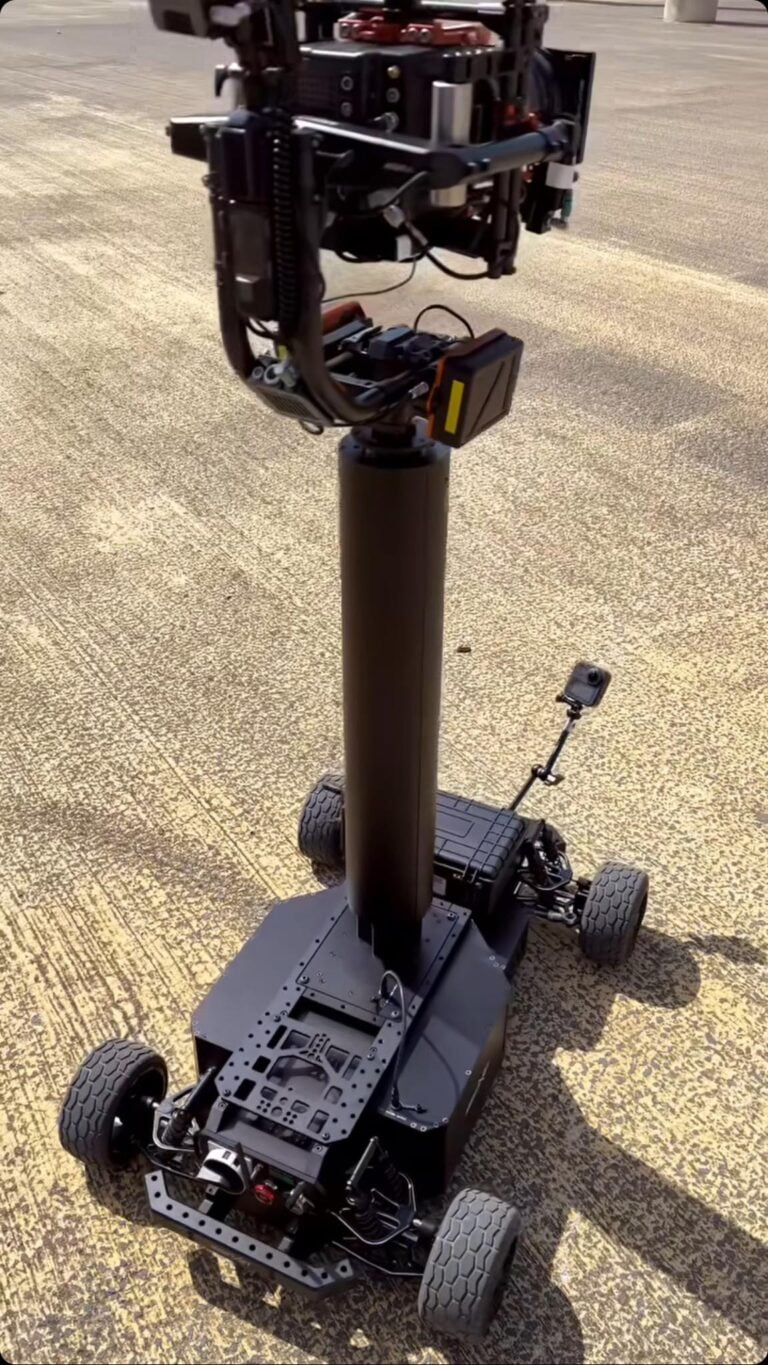

Saiya latest 4WD remote-controlled camera car with tower.
This versatile 4WD remote-controlled camera car with tower. features front and rear platforms (for low-angle shots) compatible with the Ronin 4D, while the top of the lifting column (1-1.5 meters) accommodates gimbals such as the Ronin 4D, Ronin 2, SHOTOVER and MOVI, along with professional cameras. Optional on-road tires, track wheels, and all-terrain tires are available to suit various filming scenarios. The vehicle has a maximum speed of approximately 20 km/h and a range of over four hours. Electronic safety lock key, one-touch power off; emergency stop switch; one-touch switch for left and right LED light groups; equipped with brake device, one-touch braking.
Suitable for: filmmaker, aerial photography, videography, digital creator, studio,sports events.
